| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | DXG-10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 20-30weeks |
| Payment Terms: | L/C, D/A, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 20 sets |
| Clarifier Diameter: | 11M | Recommended Clarifier Depth: | 4-4.8M |
|---|---|---|---|
| Peripheral Speed: | 1-3m/min | Drive Power: | 0.55 |
| Highlight: | Rotating Sludge Scraper System,11M Sludge Scraper System,Sedimentation Tank Clarifier |
||

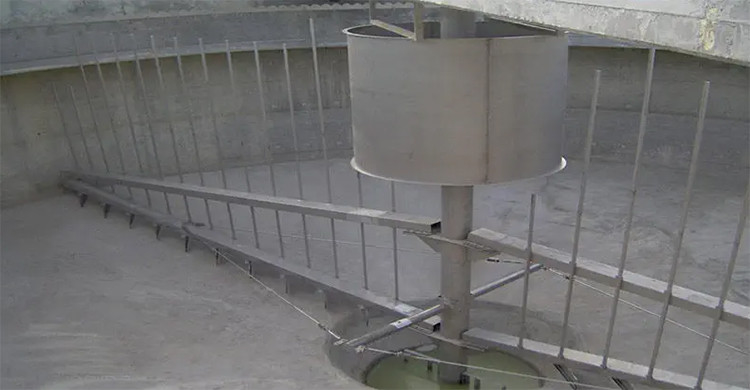

Effluent is channelled to the centre of the tank in the influent well where it is spread evenly and without turbulence over the thickening zone. The clean effluent is collected over a saw toothed outlet weir. Vertical pickets attached to the drive shaft are used for removing gas from and thickening the sludge. The thickened sludge is guided to the centre of the tank by adjustable bottom scrapers. From the sludge well, they are carried to the final treatment stage by hydrostatic pressure or pumping.
The thickener is designed for tanks 3 to 16m in diameter.
Sludge Scraper System
| Model | DXG-11 |
| Pool diameter m | 11 |
| Water depth m | 3.6-4.4 |
| Pool depth m | 4-4.8 |
| Peripheral linear speed m/min | 1-2 |
| Drive power kw | 0.55 |
| Motor brand | SEW /NORD /GUOMAO |
| Material | Carbon steel bridge frame&transmission mechanism |
| Wetted material | SUS304/SUS316L |
Sludge Scraper System Advantages
Sludge Scraper System Features
Main Structures
The scraper is composed of a work bridge, driving device, center support, center transmission frame, scraper arm and plate, skimming device, steady flow device and other parts.
Sludge Scraper System Applications
