| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | DXG-10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 20-30weeks |
| Payment Terms: | L/C, D/A, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 20 sets |
| Clarifier Diameter: | 13M | Recommended Clarifier Depth: | 4-4.8M |
|---|---|---|---|
| Peripheral Speed: | 1-3m/min | Drive Power: | 0.55 |
| Highlight: | 13m circular sedimentation tank,0.55kw circular sedimentation tank,13m circular settling tank |
||

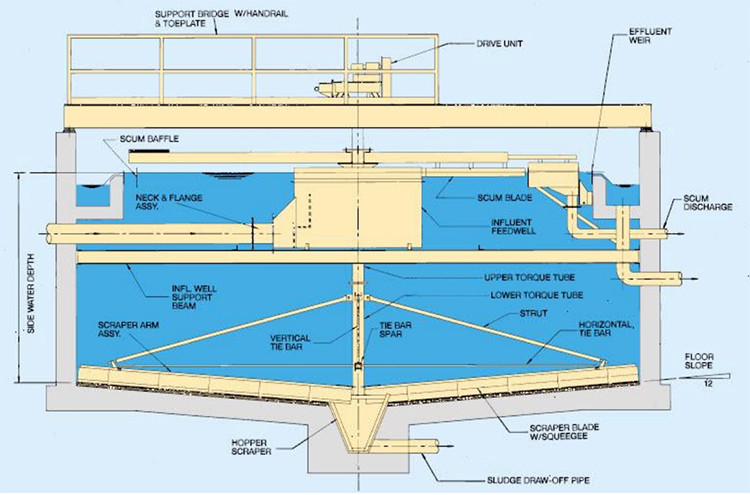

Sedimentation tank with conical bottom is made of concrete or steel, sludge pit is located at the tank center, connect with sludge pipe. Wastewater enter into tank through central steady flow tube. Sediment in water fall in tank bottom and is scraped and collected by scraper to central sludge collecting pit, and then is discharged through sludge pipe. Strong technical team and strict final inspections ensure excellent quality and long service life of center drive mud scraper.
Sludge Scraper System
| Model | DXG-13 |
| Pool diameter m | 13 |
| Water depth m | 3.6-4.4 |
| Pool depth m | 4-4.8 |
| Peripheral linear speed m/min | 1-2 |
| Drive power kw | 0.55 |
| Motor brand | SEW /NORD /GUOMAO |
| Material | Carbon steel bridge frame&transmission mechanism |
| Wetted material | SUS304/SUS316L |
Sludge Scraper System Advantages
Sludge Scraper System Applications
Sludge Scraper System Support Bridge
The support bridge provides access to the drivemechanism. For operator convenience and safety, the
bridge is provided with a minimum three foot widewalkway. All walkways have handrails and a four inch
high kickplate along both sides and around the drive.
