| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | DXG-4M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 4 weeks |
| Payment Terms: | L/C, D/A, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 20 sets |
| Clarifier Diameter: | 4M | Recommended Clarifier Depth: | 3-5M |
|---|---|---|---|
| Peripheral Speed: | 1-3m/min | Drive Power: | 0.55 |
| Highlight: | SGS circular sedimentation tank,5M circular sedimentation tank,SGS circular settling tank |
||

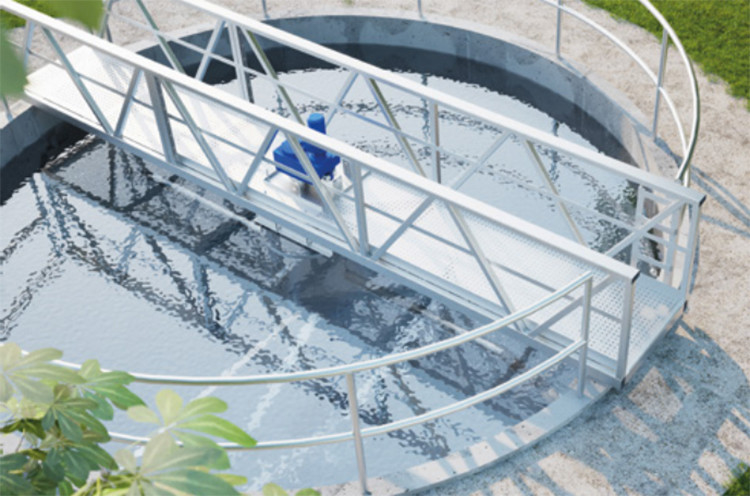

DXG series center drive mud scraper is central driving, widely used for scraping and discharging sludge in round primary sedimentation tank, secondary sedimentation tank and concentrated tank, working diameter ranges from 8m to 20m. Center drive mud scraper is specially designed for these applications. We have been over 10years in manufacturing and designing of center drive mud scraper
Sludge Scraper System
| Model | DXG-5 |
| Pool diameter m | 5 |
| Water depth m | 2.9-3.6 |
| Pool depth m | 3.3-4 |
| Peripheral linear speed m/min | 1-2 |
| Drive power kw | 0.55 |
| Motor brand | SEW /NORD /GUOMAO |
| Material | Carbon steel bridge frame&transmission mechanism |
| Wetted material | SUS304/SUS316L |
Sludge Scraper System Function
Main Structures
The scraper is composed of a work bridge, driving device, center support, center transmission frame, scraper arm and plate, skimming device, steady flow device and other parts.
Sludge Scraper System Benefits
Sludge Scraper System Applications
