| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-300 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Material: | 304 316 | Product Name: | Static Screen |
|---|---|---|---|
| Application: | Wastewater Treatment | Function: | SS Removal BOD Removal |
| Keywords: | Solid Liquid Separator | Feature: | Suspended Matter |
| Highlight: | solid liquid separation static screen wastewater,self cleaning static screen wastewater,static screen wastewater self cleaning |
||
HS-300 SUS304 316 Removes Solids Wastewater Screening Equipment Static Screen Wastewater

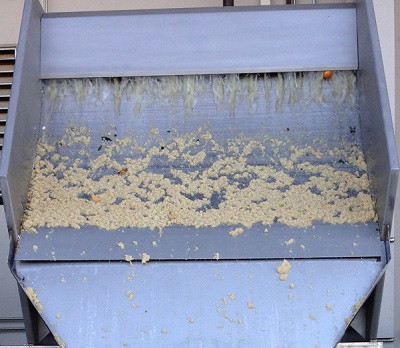

What Is Static Screen
DAGYEE provides reliable performance in liquid/solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid/solid separation screens are economical and simple to operate.
HS-300 Static Screen Specifications
| Model | HS-300 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 80 |
| Effluent | 80 |
| Dimensions(m) | 1.43*0.43*2 |
| Weight(Kg) | 150 |
| 0.5mm-Capacities(m3/h) | 6 |
| 1mm-Capacities(m4/h) | 13 |
| 1.5mm-Capacities(m5/h) | 16 |
How Does Static Screen Works
Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
Advantages From Simple Design And Robust Construction
STATIC SCREEN SPECIFICATIONS
STATIC SCREEN APPLICATION
Static Hydraulic Screen
