| Place of Origin: | Jiangsu Wuxi |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE SGS |
| Model Number: | HS-1500 |
| Minimum Order Quantity: | 1set |
| Price: | USD3500-10000 |
| Packaging Details: | Wooden box, steel bracket |
| Delivery Time: | 3-4weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100sets per month |
| Material: | SUS304 SUS316 | Capacity: | 1-150m3/hr |
|---|---|---|---|
| MOQ: | 1set | Name: | Static Wedge Wire Screen |
| Highlight: | stainless steel 304 rotary soil screener,stainless steel 316 rotary soil screener,sgs multi drum soil screener |
||
static sieve equipment we produce is manufactured from stainless sieve bars called wedge wire slots. The chassis of the equipment is manufactured from AISI 304 stainless steel or epoxy paint protected carbon steel.
Sieve opening is projected between 500 microns and 2 mm.Inlet and outlet are manufactured with flanges, thus facilitating installation.
What Is External Rotary Drum Screen
Self-cleaning wedge wire screen. Primary screening separator and removes non dissolved solid materials that could cause mechanical damage and blockages to the next treatment steps in WWTP.it is a proven fine screening technology for municipal wastewater treatment plants and many industries with several application capabilities.
Static Screen Wastewater Technical
| HS Model |
Piping Connections() | Physical Dimensions(m) | Weight (Kg) |
Capacities(m3/h) | |||||
| Inlet(a) | Effluent(b) | L | W | H | 0.5mm | 1mm | 1.5mm | ||
| HS-300 | 80 | 80 | 1.43 | 0.43 | 2 | 150 | 6 | 13 | 16 |
| HS-500 | 100 | 100 | 1.43 | 0.63 | 2 | 180 | 10 | 22 | 35 |
| HS-700 | 100 | 100 | 1.43 | 0.83 | 2 | 200 | 15 | 30 | 50 |
| HS-800 | 100 | 125 | 1.43 | 0.93 | 2 | 250 | 16 | 35 | 55 |
| HS-1000 | 150 | 150 | 1.43 | 1.13 | 2 | 280 | 20 | 45 | 70 |
| HS-1500 | 150 | 150 | 1.43 | 1.63 | 2 | 300 | 30 | 65 | 100 |
| HS-2000 | 200 | 200 | 1.43 | 2.13 | 2 | 400 | 40 | 75 | 120 |

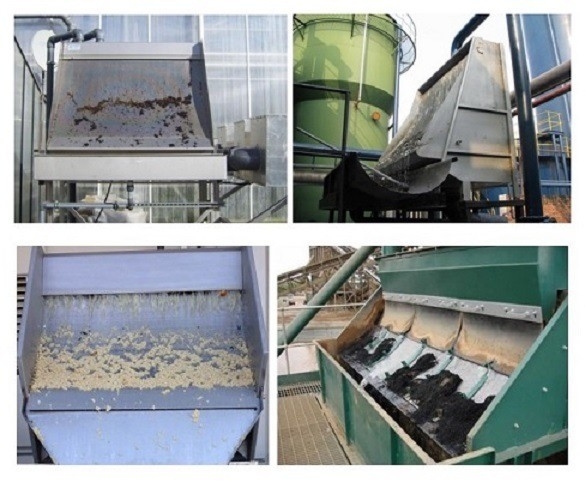

Static Screen Wastewater Application
MAIN SOLUTION
Used for Dissolved air flotation as a core product, static screen as a pretreatment before Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount of suspended solids going to the DAF unit.
STATIC SCREEN SPECIFICATIONS
STATIC SCREEN APPLICATION
