SS304 316 V-Slot Wire Sieve Bend Solid Liquid Separation Static Screen Livestock Wastewater

Static Screen Wastewater Description

The static screen has a built-in screen. The screen consists of a horizontal bar with a special profile and is made of Aisi 304 or 316 quality stainless steel.

The water is distributed in the upper part of the filter screen, and its inclination on the horizontal surface gradually decreases from top to bottom.

The effect of solid matter separation and dripping is obtained sequentially.

Static Screen Wastewater Works

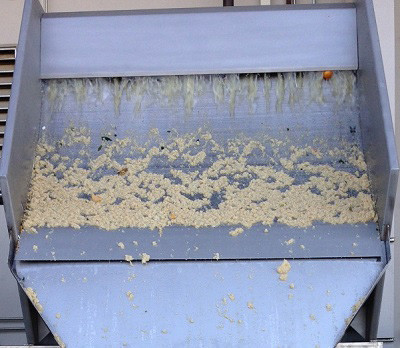

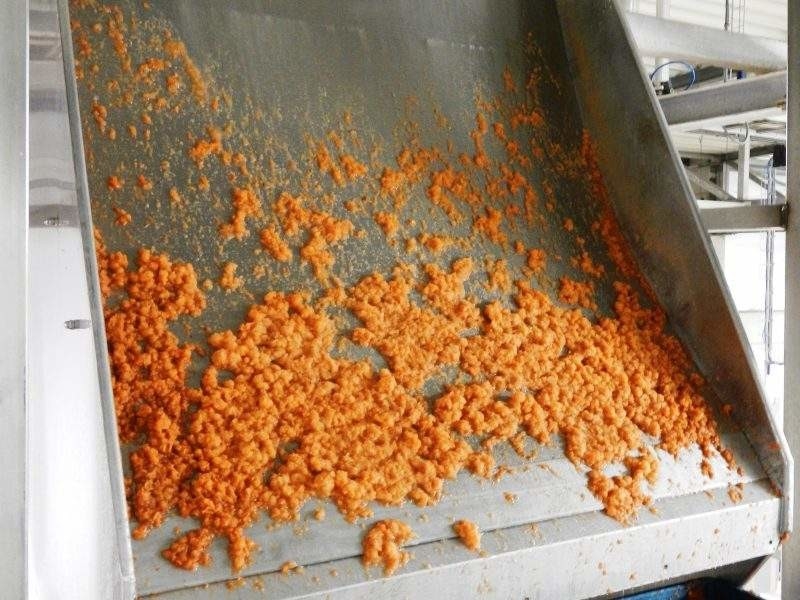

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.

Static Screen Wastewater Model

Static Screen Wastewater Feature

No moving parts, no motor
Very low installation cost, no maintenance required
Only need regular cleaning
Quiet operation
V shape of the bar provides a self-cleaning effect on the screen

Static Screen Wastewater Application

Fruit and vegetable canning
Wine producers and distilleries
Meat and processed meals industry
Slaughterhouse
Fish processing
Breweries and dairies
